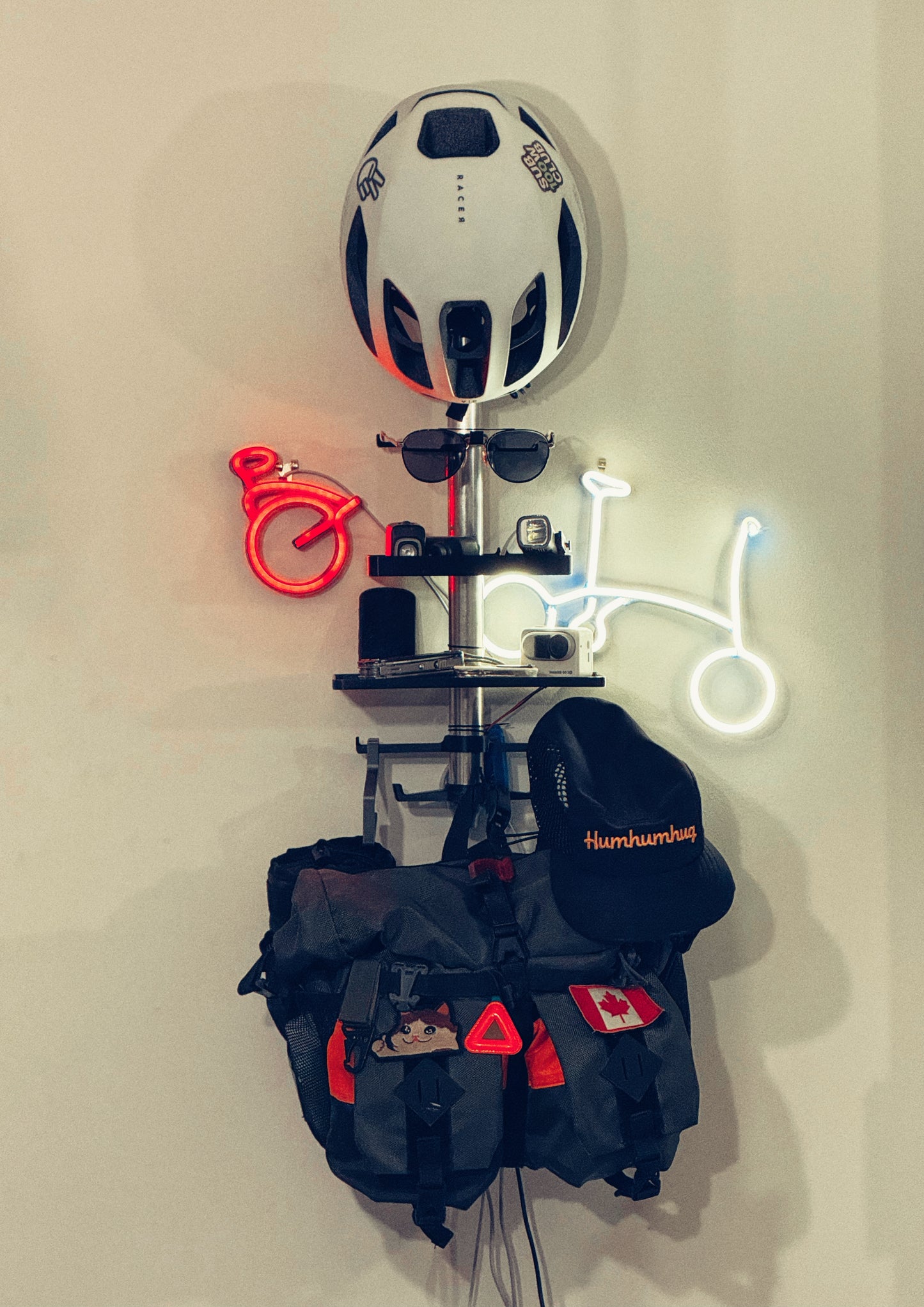

BrompRack - Brompton Gear Organizer

3D printed parts to use with your spare Brompton seatpost to make the BrompRack, a wall mounted bike gear organizer.

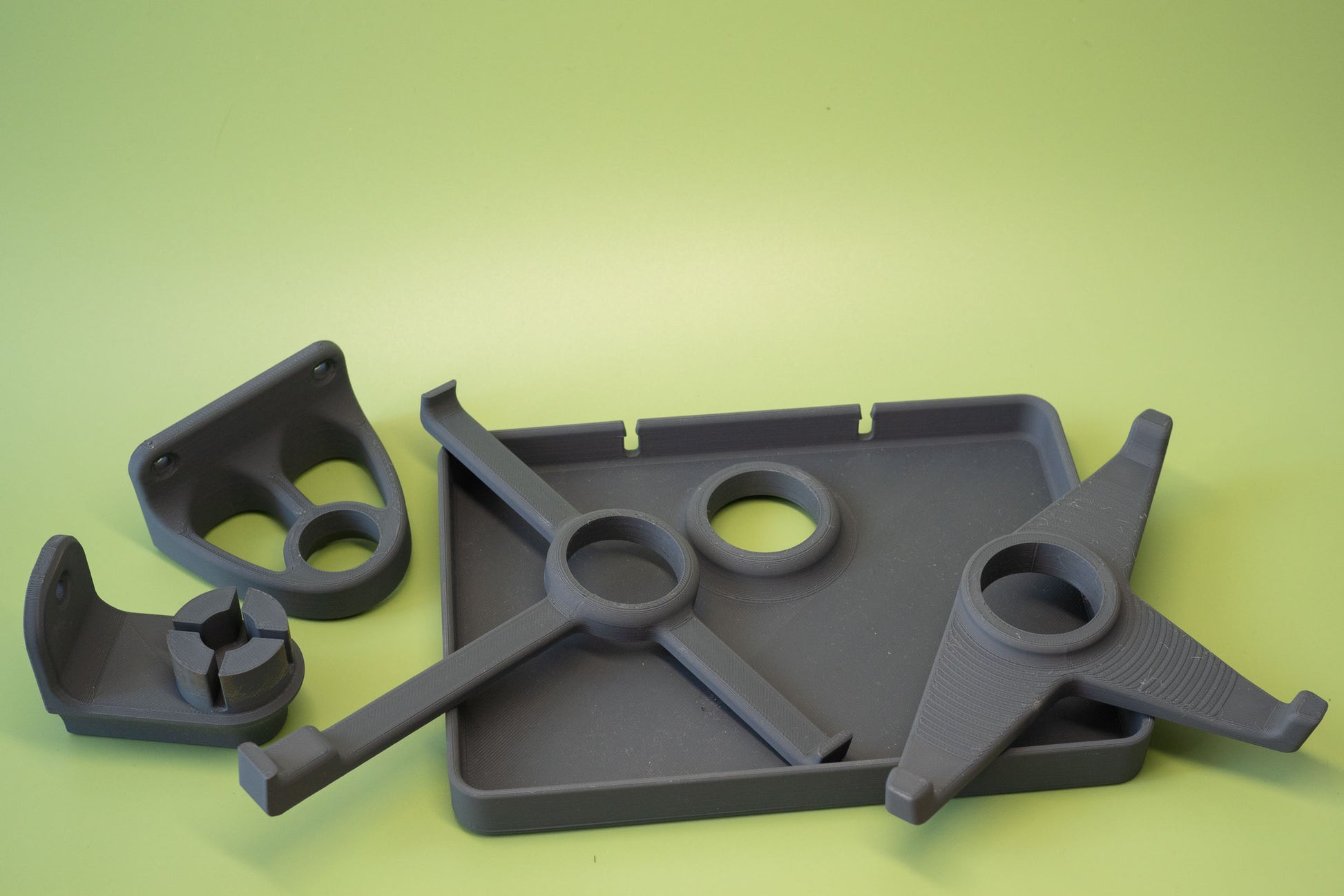

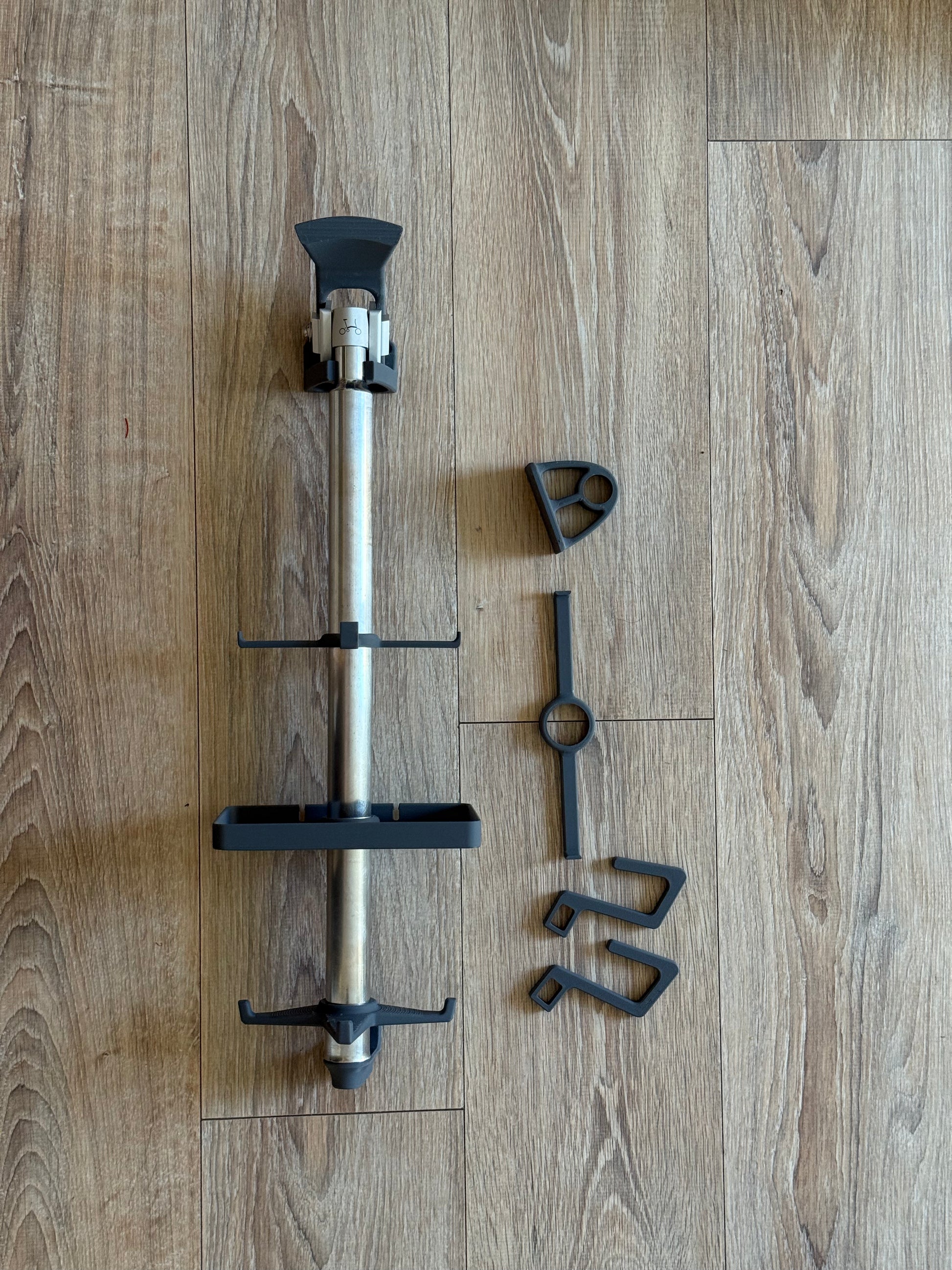

Parts included are:

• Top and Bottom Wall Mount
• 1x Helmet holder
• 1x Sunglass holder
• 1x Small shelf (option for larger)
• 1x Bag holder

Optional add ons:

• Larger shelf/additional shelves
• Shoe hanger

Installation video here.

Installation process:

1. Measure out the space you plan to install in and make sure there is enough room above and below the rack for everything you want to fit.
2. Mark out the hole for the trapezoid piece. Use the appropriate wall anchor and screw to secure the piece.
3. Slide the bottom mount onto the trapezoid.
4. Put the seatpost onto the bottom mount and attach the top mount so you can mark out where to drill the holes for the top. Install the anchors.
5. Install all the shelves and racks in the order you want (you'll need to unmount the post from the wall if you want to change the order later).
6. Reinstall the post with all the racks and the top mount. Add the two screws to the top mount.
7. Put the helmet mount on top. If you have the pentaclip version, the helmet mount installs similar to a regular saddle via the rails.
